Welcome to our comprehensive guide on bevel gauges, essential tools in the world of precision measurement. Whether you're a woodworker laying out miters, a welder checking joint angles, or a machinist ensuring perfect fits, bevel gauges allow you to accurately measure, transfer, and replicate angles with ease. In this category, you'll find a variety of options from classic sliding T-bevels to digital angle finders, all designed to deliver reliability and precision for professional and DIY projects alike.
Understanding Bevel Gauges: The Basics
Bevel gauges, also known as sliding T-bevels or adjustable bevels, are handheld instruments used to measure and mark angles on materials like wood, metal, and stone. The core design features a pivoting blade locked in place by a wing nut or lever, paired with a handle for stability. Traditional models use dual scales (metric and imperial) for versatility, while modern variants incorporate digital readouts and bubble levels for enhanced accuracy.
These tools shine in scenarios requiring repeatable angles, outperforming protractors by allowing direct transfer from one surface to another without recalculation. As part of the broader Gauges selection within Dimensional Measurement, bevel gauges bridge the gap between simple rulers and advanced layout tools.
Key Features to Consider When Buying a Bevel Gauge
Selecting the right bevel gauge depends on your specific needs. Start with blade length: 9-inch options like the Johnson Level & Tool B75 offer a good balance for most tasks, while shorter blades suit pocket portability. Material matters too—stainless steel resists corrosion in workshops, and hardwood or structo-cast handles provide ergonomic comfort during extended use.
Locking mechanisms are crucial; look for smooth-adjusting wing nuts or quick-release levers that hold angles firmly without slippage. Digital models, such as those from HARDELL, add LCD screens for 0-360 degree readings and often include horizontal/vertical bubbles for leveling. For specialized tasks, consider gauges with angled blades for feeler-style gap checks or fillet throat measurements in welding.
- Blade Material: Stainless steel for durability; brass for non-marring.
- Scales: Dual metric/imperial for global compatibility.
- Handle: Ergonomic wood, aluminum, or composite.
- Extras: Bubble levels, digital displays, or multi-angle presets.
Prioritize build quality from trusted makers—Johnson excels in robust, affordable T-bevels, while HARDELL leads in tech-forward digital tools.
Common Applications and Use Cases
Bevel gauges are indispensable across trades. In woodworking, they transfer roof pitches or compound miters seamlessly. Welders rely on them for bevel angle inspections, often pairing with fillet gauges for throat depth. Machinists use them for drill point sharpening angles, and guitar luthiers check fretboard setups.
For alternatives in gap measurement, explore our Feeler Gauges category, which complements bevels in valve and piston work. In broader precision tasks under Test, Measure & Inspect, they integrate with calipers and micrometers for full layouts.
Comparing Popular Types: Traditional vs. Digital
Traditional sliding bevels like the Joseph Marples Beechwood model or WOODRIVER's angle gauge prioritize simplicity and heirloom quality, ideal for hand tool purists. Their adjustable arms lock precisely, making them favorites for cabinetry.

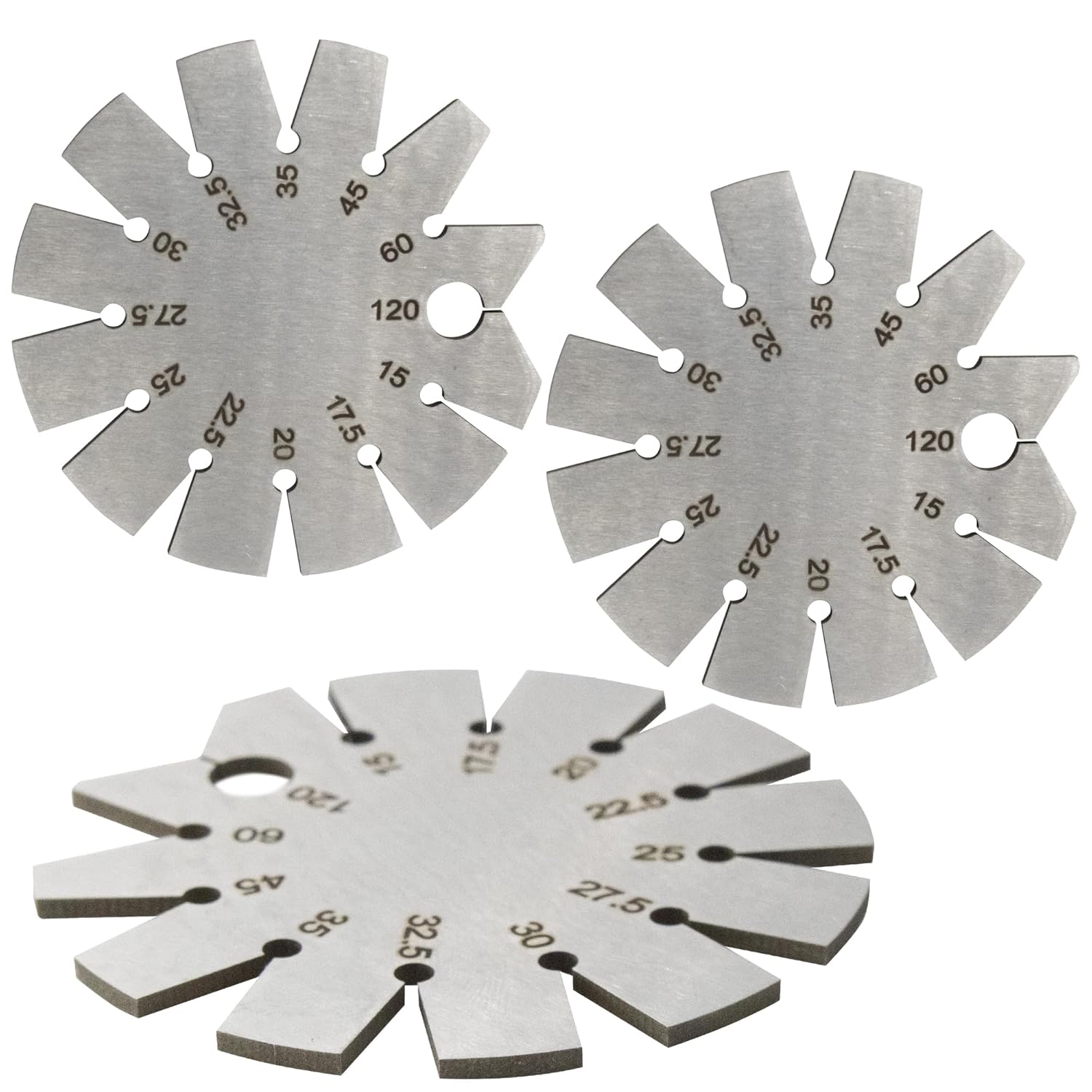

Digital counterparts, such as the 8-inch HARDELL T-bevel protractor, offer readout precision to 0.1 degrees, with large screens and reversible blades. For sharpening, compact stainless steel gauges from Adyoney (15-120 degrees) excel in knife and axe work. When deciding, match the tool to your workflow—analog for fieldwork, digital for shop accuracy.
Brands like WOODRIVER focus on craftsman-grade tools, ensuring smooth operation and lasting value.
Frequently Asked Questions
What is the difference between a bevel gauge and a protractor?
A protractor measures angles on paper or flat surfaces, while a bevel gauge transfers angles directly to material edges, making it more practical for 3D work like framing or joinery.
Are digital bevel gauges worth the investment?
Yes, for frequent high-precision tasks; they provide instant readings and eliminate scale interpretation errors, though traditional models suffice for most casual users.
How do I calibrate a bevel gauge?
For analog types, set to 90 degrees against a square and lock; digital models self-zero or use reference angles. Always check locks for slippage.
Can bevel gauges measure internal angles?
Many yes, via reversible blades or folding designs; look for models specifying inside/outside capability for pipes or frames.
What maintenance do bevel gauges need?
Wipe blades clean, oil pivots lightly, and store dry to prevent rust. Wood handles benefit from occasional conditioning.
Ready to find your perfect bevel gauge? Browse our selection and elevate your precision work today. For more measurement solutions, check related options in Bore Gauges.
