Welcome to our comprehensive guide on ground wires, essential components in any electrical setup. Whether you're wiring a home outlet, securing an electrical box, or grounding automotive systems, these products—from compact 8-inch pigtails to 25-foot rolls—provide the safe path for fault currents, preventing shocks and fires.
Why Ground Wires Matter for Electrical Safety
Ground wires connect equipment to earth ground, diverting excess electricity during faults. In residential projects, they're crucial for compliance with NEC codes. Look for UL-listed options like those from trusted suppliers to ensure reliability. Common types include pre-stripped pigtails for quick box installations and longer bare copper runs for panels.
What to Look for When Buying Ground Wires
Key factors include:
- AWG Gauge: 10-12 AWG for most home uses; thicker 8 AWG for higher amps.
- Material: Solid or stranded copper for conductivity; bare for direct ground or insulated green for identification.

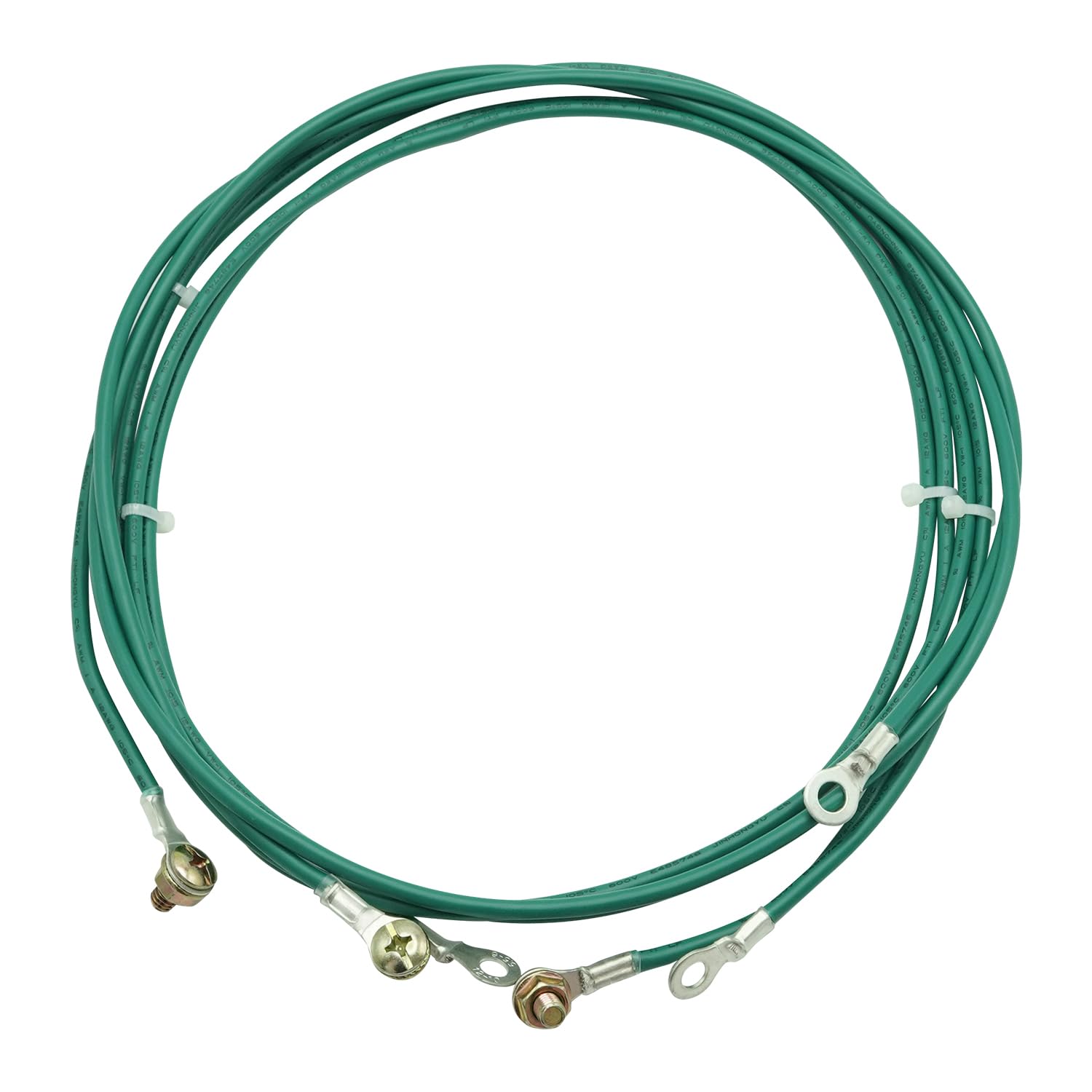

- Length & Terminals: 6-8 inch pigtails with captive screws or ring lugs; longer straps for vehicles.
- Pack Size: Bulk packs (25-50) for pros, singles for DIY.
- UL Listing: Verifies safety standards.
For home wiring, opt for edge-stripped 12 AWG pigtails that install in seconds. Automotive users prefer tinned copper braided straps with ring terminals for vibration resistance.
Top Types of Ground Wires

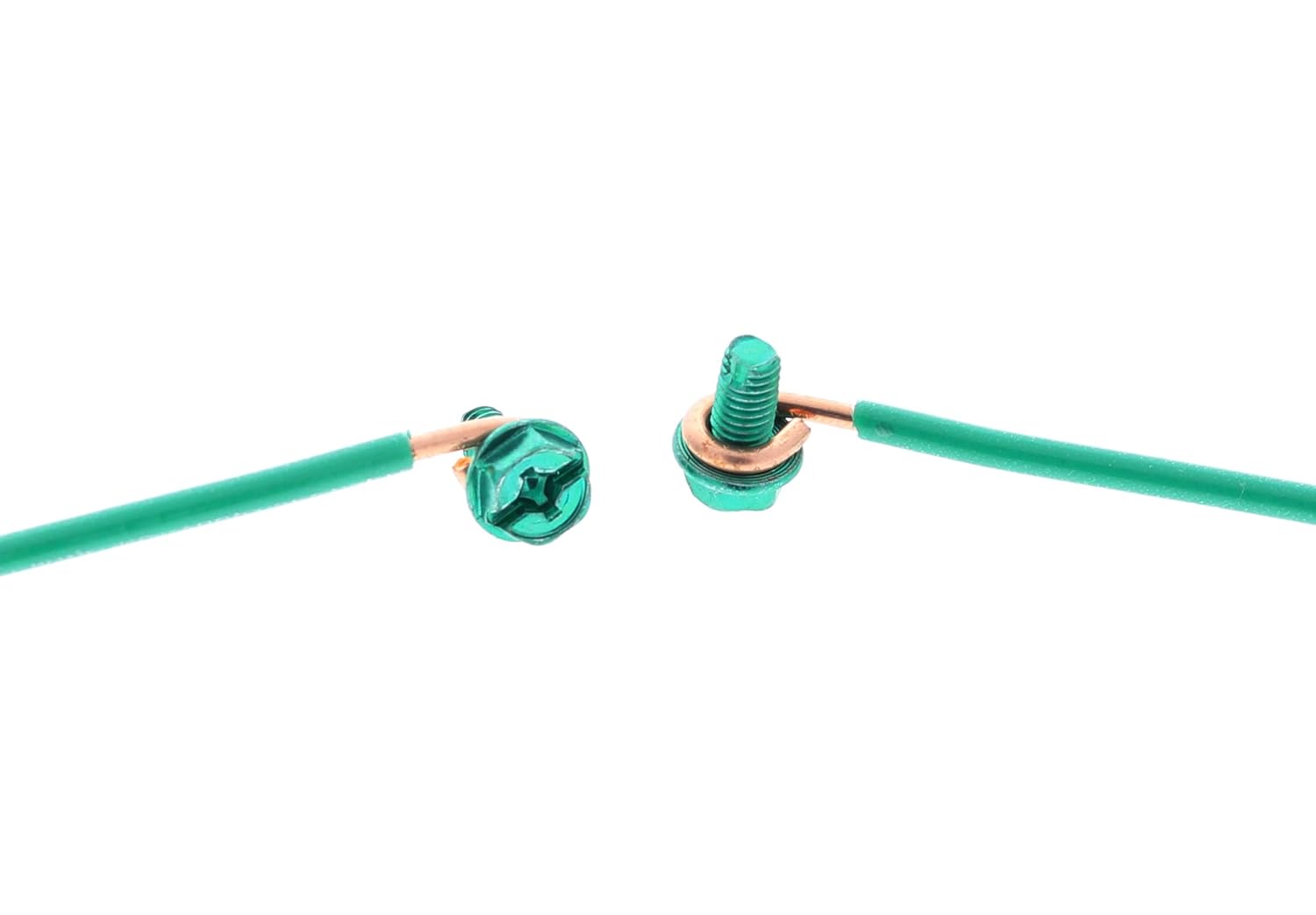

Grounding Pigtails: Short, prepped wires like 8-inch 12 AWG stranded with fork terminals or ground screws. Ideal for outlets and boxes. Brands like AirmontProducts offer 6.5-inch solid copper versions in packs of 10 or 25, perfect for multiple jobs.
Bare Copper Wire: Solid 8-gauge rolls, such as 25 ft. from Southwire, for custom grounding electrode runs. Great for service panels.
Insulated Grounding Wire: Green THHN/THWN like 10 AWG from THECIMPLECO in 10-25 ft. lengths, suitable for conduit runs.
Automotive Ground Straps: Braided tinned copper, 10-20 inches, for cars, RVs, and boats.
Pair ground wires with electrical boxes, conduits & fittings for complete installations or check outlets & accessories for related safety gear.
Common Use Cases
In home improvement, use pigtails when replacing switches & dimmers or installing breakers. For larger projects under electrical supplies, longer wires connect to ground rods. Automotive enthusiasts rely on straps for battery grounds, while RVers ensure chassis protection.
If troubleshooting, combine with testers to verify continuity. Always follow local codes and consult pros for complex setups.
Frequently Asked Questions
What is the difference between solid and stranded ground wire?
Solid wire is rigid, ideal for straight runs in boxes; stranded is flexible for tight bends or vibrations, like in automotive applications.
Do I need green insulation on ground wires?
Green identifies grounding conductors per code; bare is fine for direct earth connections, but insulated prevents shorts in conduits.
What AWG ground wire for a 20-amp circuit?
12 AWG minimum; use 10 AWG for equipment grounds over 20 feet to minimize voltage drop.
Are pre-made pigtails code-compliant?
Yes, UL-listed ones with proper terminals meet NEC for most residential use.
Can I use ground wires for neutral?
No—grounds handle faults only; neutrals carry return current. Mixing causes hazards.
